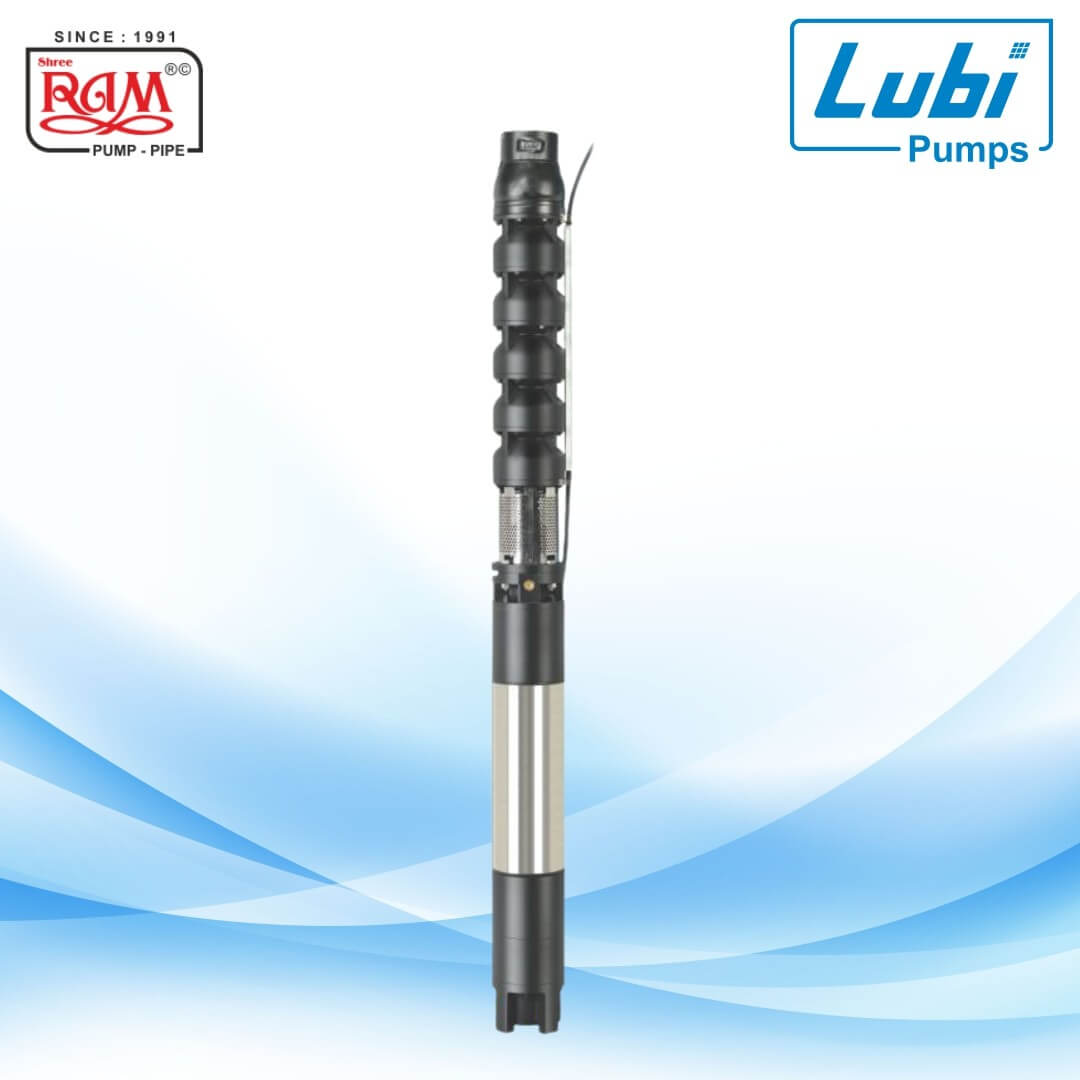

LUBI V6 Submersible Pump – LSM / LSB

LUBI's Submersible pumpsets are made out of premium quality of raw material and workmanship to ensure that pump is energy efficient, reliable and has a very long service life with negligible repairing.

LUBI Submersibles Pumpsets are manufactured as per IS: 8034 & IS: 9283 strict quality control for year of efficient & reliable operation.

Material of Construction :

• Motor Body      : Stainless Steel Mild Steel
• Motor Stator  : Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provided to protect motor windings.
• Rotor                 : Vacuum impregnated, shot blasted & coated with poly urethene colour for corrosion resistance & dynamically balanced for vibration free smooth operation.
• Windings          : PVC / Polyster insulated, water cooled
• Journal Bearings : Leaded Bronze / Nitrile Rubber and Stainless Steel, Water Lubricated, having high load bearing capacity.
• Thrust Bearings : Carbon Vs. Steel segment special self-aligning and water lubricated to withstand high axial thrust loads.
• Pressure Equalizing Diaphragm :  Adequately sized to accommodate expansion of water inside the motor and prevent loss of cooling water.
• Impeller            : High quality abrasion resistant Bronze / Stainless Steel & dynamically balanced.
• Bowl                  : High grade Cast Iron Stainless Steel Investment Casted.
• Wear Rings      : High quality abrasion resistant Bronze / Nitrile Rubber
• Shaft                 : Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances.
• Suction Casing : Provided with perforated Stainless Steel Strainer and adequately sized to allow the water to be sucked in with minimum friction.
• Cable Sealing Arrangement : Designed so that no borewell water with sand can enter the motor.

Applications :

• Irrigation of Fields / Farms
• Community Water Supply
• Industries
• High-rise Buildings
• Housing Complexes
• Bungalows
